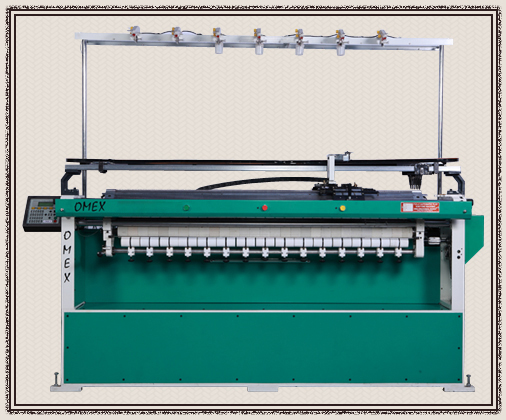

Our corporation investigate and manufacture the Knitting Machine by our self which called “Omex ” Computerized Flat Knitting Machine, it’s Knitting System Adopt Single Carriage with three systems ,transfer needle combined cam is designed to be composite, three systems can transfer needle as single or simultaneity, also can transfer needle when another is knitting .The machine’s control interface collocate LCD menu form ,make the operation became easy to mastery . This machine would be mostly used to automatically knit woolen sweater, fit to the material include silk ,cotton, woolen, Knitting Collars, Cuff bands, Pullovers, Sweat Shirts, Fabric, mix-textile and so on, it is able to knit double-face jacquard, single-face jacquard, single-face and no dashed jacquard, pick hole, wring flower and so on, include well-regulated design and irregular design. |
|
|
|
H-Transfer Knitting Mchiane Technical Specifications |
Knitting Width |
28 to 110 inches |
Knitting Speed |
0.8/1.0m/sec, knitting speed varies according to gauge, yarn & knitting conditions |
Gauge |
7-8-10-11-12-14-15 |
Stitch Length |
Automatic 5 steps |
Cam System |
Single cam (separate center cam) + Transfer Knitting Mchiane |
Yarn Change |
4 or 6 |
Racking |
Moterized With Special Valve |
Command |
by Computer |
Place Counter |
4 Digit |
Economizer |
Furnished |
Stop Mition |
Needle Breakage, Fabric Falling, Fabric Rollover, Yarn Breakage, Knot or Shock |
Needle |
High or Low Butt |
Power |
0.750 kw/hp |
Drive |
AC motor controlled by inverter AC 230 - Single Phase, 50Hz |
|
|
|
|
|
|
|
